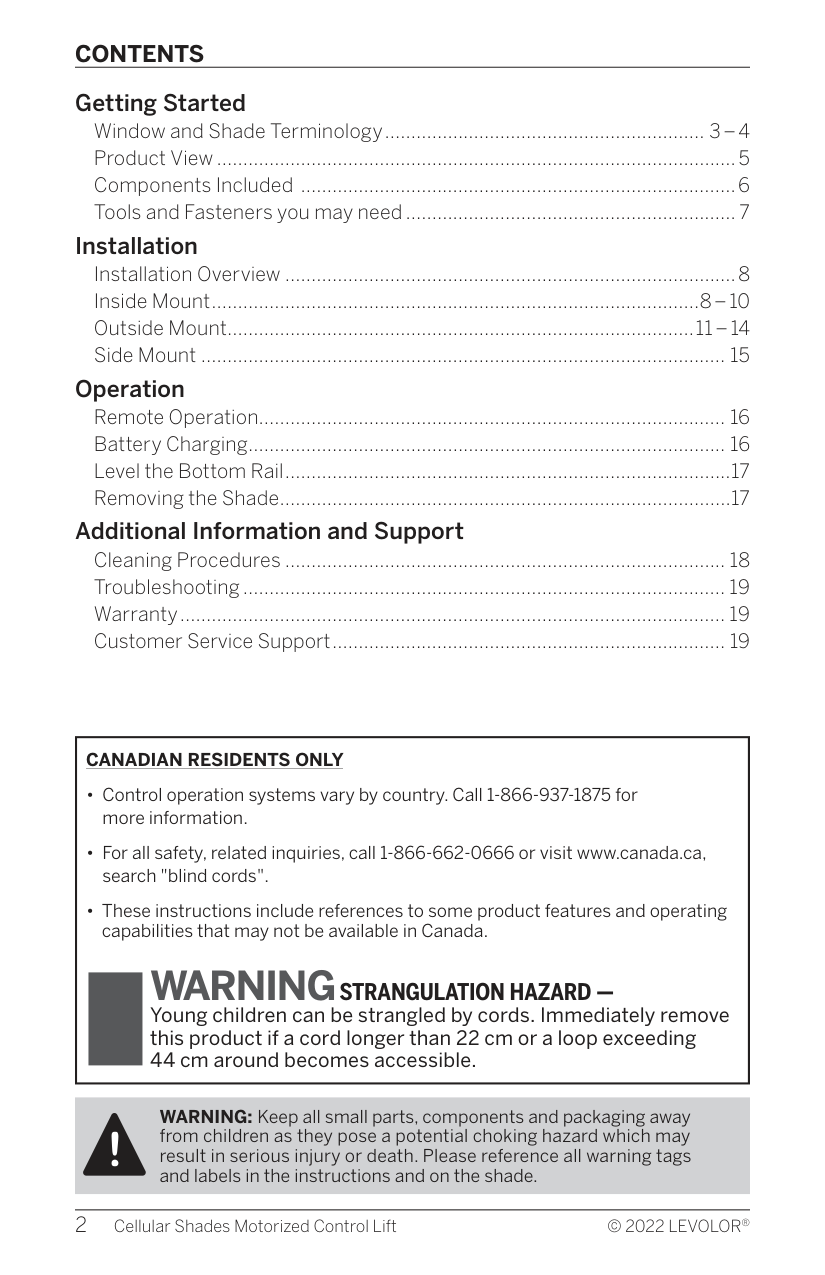

Getting Started
Window and Shade Terminology	3-4
Product View	5
Components Included	6
Tools and Fasteners you may need	7
Installation
Installation Overview	8
Inside Mount	8-10
Outside Mount	11-14
Side Mount	15
Operation
Remote Operation	16
Battery Charging	16
Level the Bottom Rail	17
Removing the Shade	17
Additional Information and Support
Cleaning Procedures	18
Troubleshooting	19
Warranty	19
Customer Service Support	19

CANADIAN RESIDENTS ONLY

· Control operation systems vary by country. Call 1-866-937-1875 for
more information.

· For all safety, related inquiries, call 1-866-662-0666 or visit www.canada.ca,
search "blind cords".

· These instructions include references to some product features and operating
capabilities that may not be available in Canada.

WARNING STRANGULATION HAZARD -

Young children can be strangled by cords. Immediately remove
this product if a cord longer than 22 cm or a loop exceeding
44 cm around becomes accessible.

!

WARNING: Keep all small parts, components and packaging away
from children as they pose a potential choking hazard which may
result in serious injury or death. Please reference all warning tags
and labels in the instructions and on the shade.

Page 3

WINDOW AND SHADE TERMINOLOGY

Thank you for purchasing LEVOLOR® Cellular Shades. With proper installation, operation,
and care, your new cellular shade will provide years of beauty and performance. Please
thoroughly review this instruction booklet before beginning installation.

MOUNTING TYPES AND WINDOW TERMINOLOGY

Molding

Head Jamb Jamb Jamb Sill

Window Components Terminology

· Collectively, the sill
and jambs are called
the "window casement"
or "frame".

Inside Mount

Inside Mount

· Shade fits within
window opening.

· Great for windows
with beautiful trim.

Outside Mount

Outside Mount

· Shade mounts
outside window
opening.

· Increased light
control and privacy.

Minimum Depth Requirements for Proper Shade Installation (inches)

Operating System	Minimum Mounting Depth	Minimum Depth for Fully Recessed/Flush Mount Headrail
Motorized	1 1/4	2 1/4

Shim - A thin strip of material used to align parts to make them fit.

Page 4

WINDOW AND SHADE TERMINOLOGY

LIFT STYLES

Top-Down/Bottom-Up Shade

Bottom-Up Shade Headrail One Fabric Panel Bottom Rail

Headrail Middle Rail One Fabric Panel Bottom Rail

Day/Night Shade

Headrail Fabric Panel A Middle Rail Fabric Panel B Bottom Rail

Page 5

Not Shown: Top-Down/Bottom-Up and Day/Night Shades

PRODUCT VIEW

Installation
Brackets

Programming
Button

Micro-USB
Charging
Port
Headrail

Standard
Bottom-Up
Shade

Bottom Rail

0 2 0 O Micro-USB Charging Cable Power Adapter Magnetic Charging Adapter

O · LEVOLOR® 0 0 OR O 0 0 \- \+ \- \+ LEVOLOR 0 LEVOLOR LEVOLOR Standard Remote Control Top-Down/Bottom-Up, Day/Night Remote Control AAA Battery (2-Pack) Remote Control Holder Hub (optional)

Remote Control Kit
(optional)

Page 6

COMPONENTS INCLUDED

Cellular Shade

Hex Head Screws
(2 per bracket)

6 Flat Head Screw for

Use with End Mounts
(provided)

Speed Nut and Screw
(two provided with each
extension bracket)

Spacer Block
(optional)

Extension / Side Mount Brackets
(optional)

Hold-Down Bracket
(optional)

O . LEVOLOR® 0 A OR 0 0 0 \- \+ \- \+ LEVOLOR 0 LEVOLOR LEVOLOR Standard Remote Control Top-Down/Bottom-Up, Day/Night Remote Control AAA Battery (2-Pack) Remote Control Holder Hub (optional)

Remote Control Kit
(optional)

· Shade

· Mounting Brackets

· Installation Hardware

· Remote Control Kit

· Other accessories (optional)

Optional items will be included, if
selected at time of shade order.

Page 7

TOOLS AND FASTENERS YOU MAY NEED (not included)

The tools you will need for installing your shade will vary, depending on the
installation surface, and mounting bracket type.

Tools typically used for installation include:

0 Metal Tape Measure Screwdrivers (both flat and Phillips head) 1/4" Nutdriver ( Safety Glasses Drywall Anchors Pencil Drill with Bits 3/32" drill bit & 1/4" hex driver Level Ladder

Note: Longer screws may be needed with extension brackets and spacers, not shown.

!

CAUTION: Use drywall anchors (not provided) when mounting into
drywall. Failure to properly anchor shade could cause shade
to fall, possibly resulting in injury.

Page 8

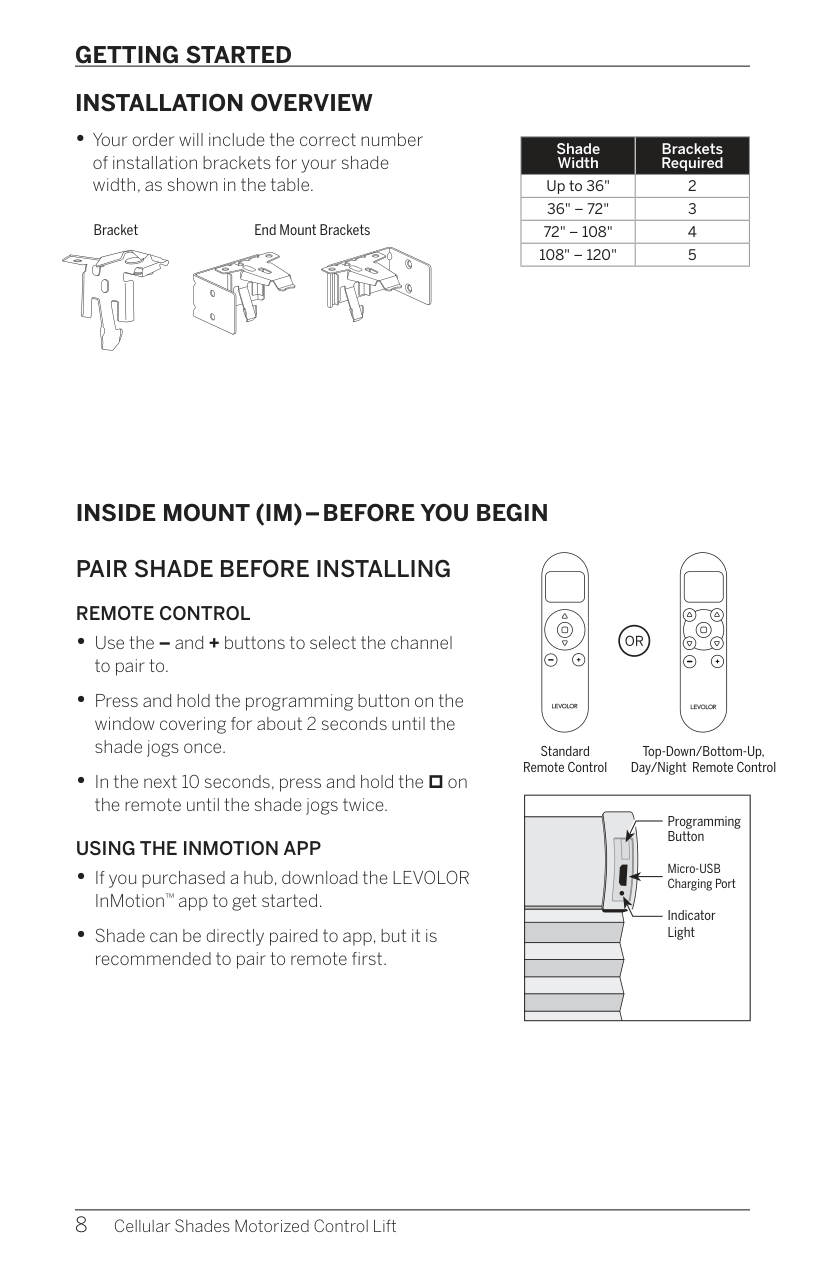

INSTALLATION OVERVIEW

· Your order will include the correct number
of installation brackets for your shade
width, as shown in the table.

Bracket End Mount Brackets O O

Shade Width	Brackets Required
Up to 36"	2
36" - 72"	3
72" - 108"	4
108" - 120"	5

INSIDE MOUNT (IM) -BEFORE YOU BEGIN

PAIR SHADE BEFORE INSTALLING

REMOTE CONTROL

. Use the - and + buttons to select the channel
to pair to.

· Press and hold the programming button on the
window covering for about 2 seconds until the
shade jogs once.

. In the next 10 seconds, press and hold the [ on
the remote until the shade jogs twice.

USING THE INMOTION APP

· If you purchased a hub, download the LEVOLOR
InMotion™ app to get started.

· Shade can be directly paired to app, but it is
recommended to pair to remote first.

4 0 0 OR O 0 0 \- \+ \- \+ LEVOLOR LEVOLOR Standard Remote Control Top-Down/Bottom-Up, Day/Night Remote Control

Programming Button Micro-USB Charging Port Indicator Light

Page 9

INSIDE MOUNT (IM)

Bracket

STEP 1: MARKING THE BRACKET LOCATIONS

· Mark 2" in from each jamb for bracket location.

- If more than two installation brackets came with your order, space additional
bracket(s) evenly between the two end brackets.

- Mount into wood whenever possible.

\+ WINDOW SIDE + Ģ H 11 2" Space Evenly Space Evenly 2" Jamb ROOM SIDE Jamb

· Center the brackets on your marks, then mark each of the screw holes.

- The minimum depth for installation brackets is 11/4".

- The minimum depth for a fully recessed mount is 21/4".

- Use the center screw hole when depth permits.

- Use both winged screw holes with shallow mounting depths.

IMPORTANT: Brackets must be level and aligned to each other.

Page 10

INSIDE MOUNT (IM)

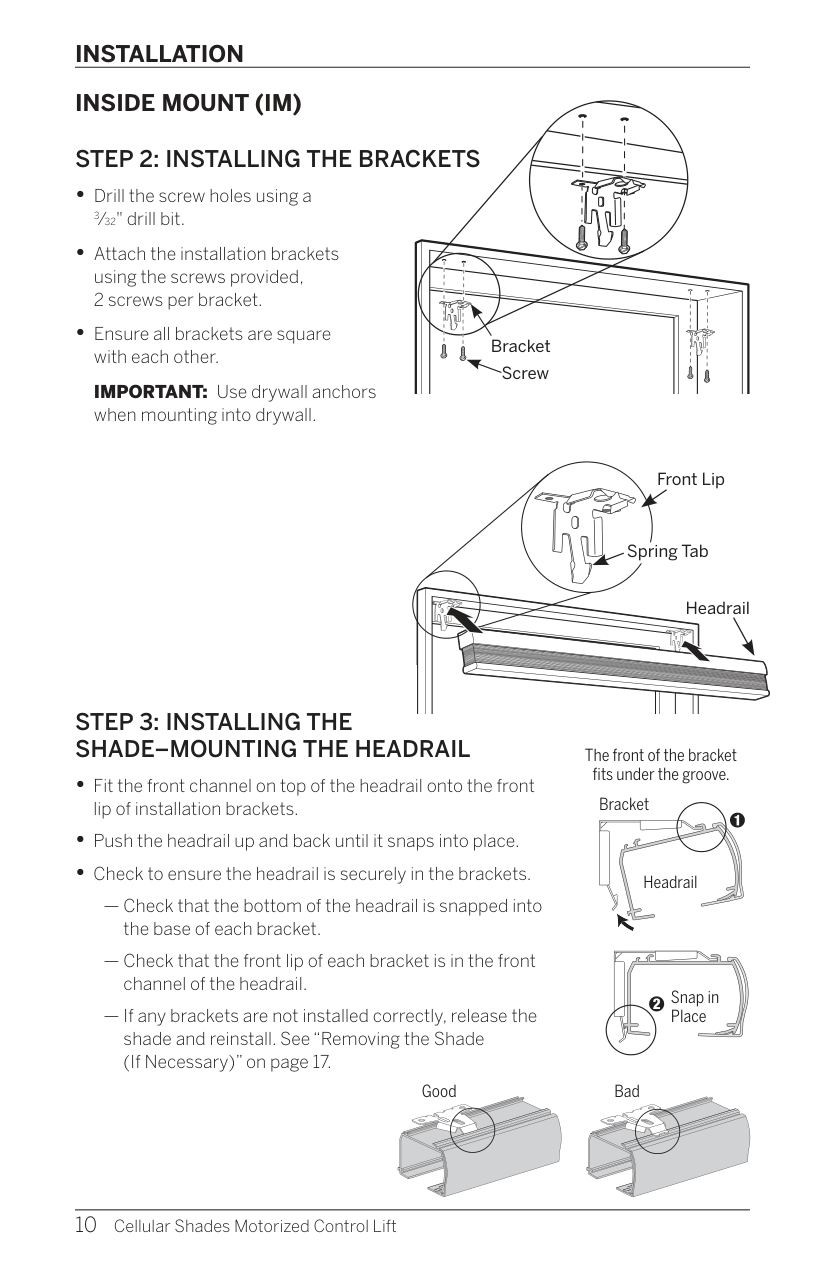

STEP 2: INSTALLING THE BRACKETS

· Drill the screw holes using a
3/32" drill bit.

· Attach the installation brackets
using the screws provided,
2 screws per bracket.

· Ensure all brackets are square
with each other.

IMPORTANT: Use drywall anchors
when mounting into drywall.

Bracket Screw

Front Lip Spring Tab Headrail

STEP 3: INSTALLING THE SHADE-MOUNTING THE HEADRAIL

. Fit the front channel on top of the headrail onto the front
lip of installation brackets.

· Push the headrail up and back until it snaps into place.

. Check to ensure the headrail is securely in the brackets.

- Check that the bottom of the headrail is snapped into
the base of each bracket.

- Check that the front lip of each bracket is in the front
channel of the headrail.

- If any brackets are not installed correctly, release the
shade and reinstall. See "Removing the Shade
(If Necessary)" on page 17.

Good

The front of the bracket
fits under the groove.

Bracket

1 Headrail

2 Snap in Place

Bad

Page 11

OUTSIDE MOUNT (OM) -BEFORE YOU BEGIN

PAIR SHADE BEFORE INSTALLING

REMOTE CONTROL

. Use the - and + buttons to select the channel
to pair to.

. Press and hold the programming button on the
window covering for about 2 seconds until the
shade jogs once.

. In the next 10 seconds, press and hold the
the remote until the shade jogs twice.

0 0 0 0 0 OR O 0 0 \- \+ \- \+ LEVOLOR LEVOLOR Standard Remote Control Top-Down/Bottom-Up, Day/Night Remote Control

on

USING THE INMOTION APP

. If you purchased a hub, download the LEVOLOR
InMotion™ app to get started.

· Shade can be directly paired to app, but it is
recommended to pair to remote first.

Programming Button Micro-USB Charging Port Indicator Light

OUTSIDE MOUNT (OM)

STEP 1: MARKING THE BRACKET LOCATIONS

NOTE: The rear of the brackets must
be flush against a flat mounting
surface. Do NOT mount brackets
on curved molding.

· Center the headrail over
the window opening at
the desired height.

. Use a pencil to lightly mark
each end of the headrail.

e Bracket

- Alternatively, measure the width of the headrail and use that width to mark
the headrail end points over the window opening.

. Mark approximately 1 - 2" in from each end of headrail for the installation
bracket locations.

- Allow a minimum of 1/4 in between the bottom of the installation bracket and the
top of the window molding.

Page 12

OUTSIDE MOUNT (OM)

· With a pencil, mark the installation brackets or extension bracket screw locations
through the larger, oblong rear holes of the bracket, 2 screws per bracket.

· Use a level to ensure all brackets are aligned.

· If more than two installation brackets come with your order, space additional bracket(s)
evenly between the two end brackets, no more than 30" apart, mark drill hole locations.

Headrail End Marks Iğı 2" Space Evenly Space Evenly 2" 1 Window Opening Motor Side

· Center the brackets on your marks, then mark each of the
screw holes.

- A minimum of 11/4" flat vertical surface is required to
mount the brackets.

- The top of the installation brackets or extension brackets
should be at the desired shade height. The brackets
should be level and aligned.

- When using extension brackets, mark two screw holes
per bracket.

1

!

CAUTION: The rear of the brackets must be flush against a flat mounting
surface. Do not mount brackets on curved molding.

Page 13

OUTSIDE MOUNT (OM)

Drywall Anchor Bracket E Screw G

STEP 2: INSTALLING THE BRACKETS

NOTE: Use drywall anchors when mounting into drywall.

· Drill the screw holes using a 3/32" drill bit.

· Attach the installation or extension brackets using the
screws provided.

IMPORTANT: The front edges of the installation brackets
must be level and aligned to each other.

. If using spacer blocks for added clearance, the spacer blocks
and shims may be stacked.

- A maximum of 11/2" of added clearance using spacer
blocks and shims is recommended.

· Attach the spacer blocks and installation brackets to a flat
vertical mounting surface with #6 mounting screws long
enough for a secure installation.

- The top of the spacer blocks should be at the desired
shade height.

- If using extension brackets, attach an installation
bracket to the underside of each extension bracket
using the provided screws and speed nuts.

Maximum 11/2" Longer Screw (Not Provided)

Page 14

INSTALLATION

OUTSIDE MOUNT (OM)

Front Lip Spring Tab Headrail

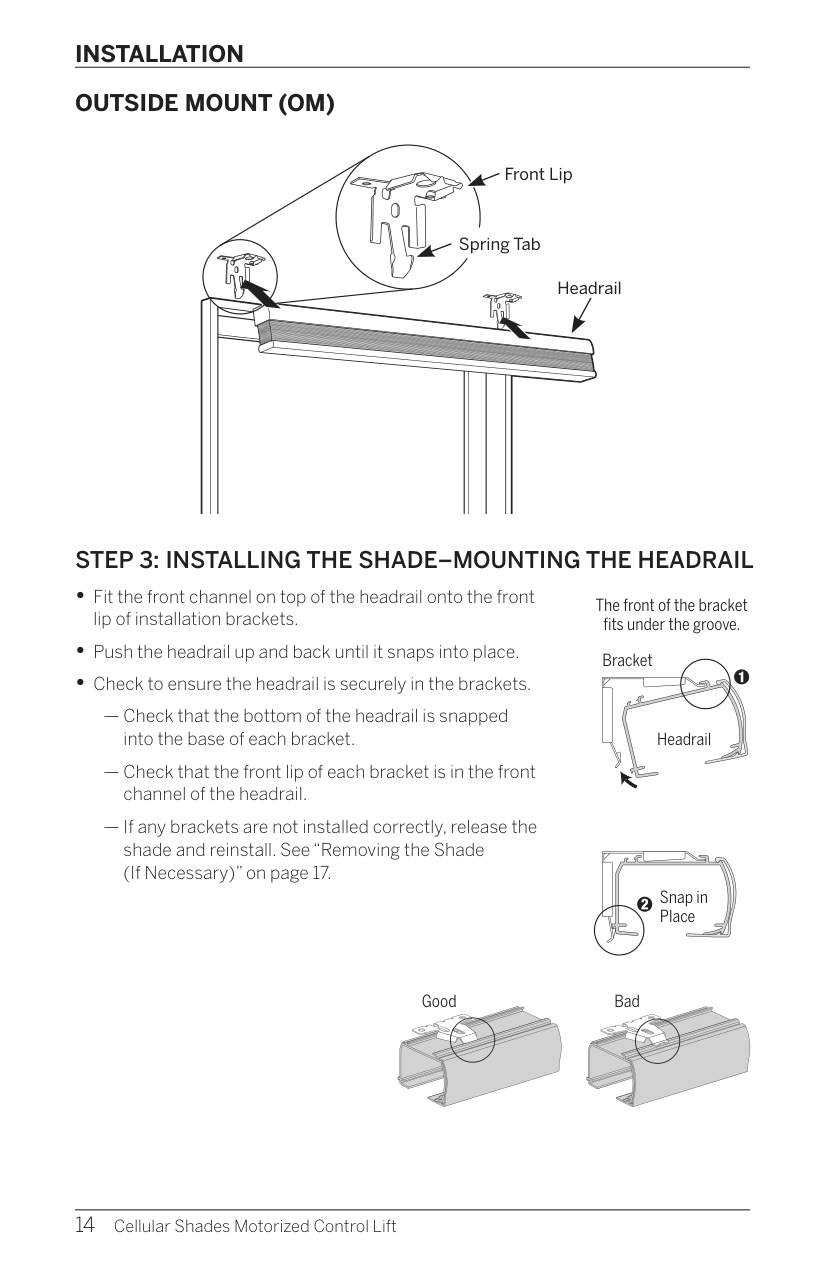

STEP 3: INSTALLING THE SHADE-MOUNTING THE HEADRAIL

. Fit the front channel on top of the headrail onto the front
lip of installation brackets.

· Push the headrail up and back until it snaps into place.

. Check to ensure the headrail is securely in the brackets.

- Check that the bottom of the headrail is snapped
into the base of each bracket.

- Check that the front lip of each bracket is in the front
channel of the headrail.

- If any brackets are not installed correctly, release the
shade and reinstall. See "Removing the Shade
(If Necessary)" on page 17.

The front of the bracket
fits under the groove.

Bracket 1 Headrail

2 Snap in Place

Good Bad

Page 15

SIDE MOUNT

STEP 1: MARKING THE BRACKET LOCATIONS

End mount the headrail when conventional mounting techniques
will not work - for example, in an arched window opening.

. Position the end mount brackets so that the top of the attached
installation brackets is at the ordered height of the shade.

IMPORTANT: Both brackets must be installed at the same
depth and height.

· Mark both screw holes.

- The mounting surface must be vertical and flat, not part of an arched curve.

Minimum 1 1/4' Ordered Shade Height

STEP 2: INSTALLING THE BRACKETS

· Drill the holes using a 3/32" drill bit.

· Attach the end mount installation brackets using the flat head
screws provided.

NOTE: Drywall mounting is not recommended.

STEP 3: INSTALLING THE SHADE-MOUNTING THE HEADRAIL

. Fit the front channel on top of the headrail onto the front
lip of installation brackets.

· Push the headrail up and back until it snaps into place.

. Check to ensure the headrail is securely in the brackets.

- Check that the bottom of the headrail is snapped into
the base of each bracket.

- Check that the front lip of each bracket is in the front
channel of the headrail.

- If any brackets are not installed correctly,
release the shade and reinstall. See
"Removing the Shade (If Necessary)"
on page 17.

The front of the bracket
fits under the groove.

Bracket 1 Headrail 2 Snap in Place Bad

Good

Page 16

REMOTE OPERATION

· Scan for remote guide.

BATTERY CHARGING

· Rechargeable battery is integrated into
shade headrail.

· For standard charging, remove the
magnetic charging insert from the headrail.
Use the micro-USB charging cable and
power adapter to charge shade.

. For easier access to the charging port, a
removable magnetic charging adapter has
been installed during production. Attach the
magnetic charging adapter to the micro-
USB charging cable and power adapter
before connecting to headrail to charge.

· Indicator light battery status:

- Low (red flash)

- Charging (green flash)

- Charged (green solid)

. It is recommended to fully charge shade
prior to first use.

Programming Button Micro-USB Charging Port Indicator Light

Magnetic Charging Insert

Page 17

LEVEL THE BOTTOM RAIL (IF NECESSARY)

· Lift the bottom rail to locate the pockets on the underside
of the rail.

. Gently pull down on the bottom rail to fully insert the 7/64"
Allen wrench key into the pocket. The key is fully inserted
when the ring on the key abuts to the pocket.

- Lift up the bottom rail slightly before turning the Allen
wrench key. Turn the key clockwise to raise that side of
the bottom rail, or counter-clockwise to lower it.

- One quarter turn of the key equals approximately 1/4".

IMPORTANT: The Allen wrench key must be fully
inserted to avoid stripping the mechanism. Do not
pull down on the bottom rail while turning the key.

Pocket ®

Underside of Bottom Rail

Raise Lower Allen Wrench Key

. If more than two pockets exist, adjust the outer pockets first. Then adjust inner
pockets as necessary, to maintain equal tension across the bottom rail. As pocket
adjustments are made, it is recommended that the shade be raised and lowered to
check that it is level.

REMOVING THE SHADE (IF NECESSARY)

· Lower the shade approximately 4".

· While holding the headrail, push
back on the bottom tab of the
installation bracket to release
the bottom edge of the headrail.

· After releasing the bottom edge,
roll the back of the headrail
down and out from the bracket.

Bracket Back of Shade Remove Headrail Bottom Tab

Page 18

CLEANING PROCEDURES

All LEVOLOR Cellular Shades are made of 100% polyester and with multiple
cleaning options, these easy to care for shades will maintain their beautiful
appearance for years to come.

NOTICE: Avoid contact with window cleaning products. Improper cleaning may
damage the shade and void warranty.

DUSTING

Use a feather duster for regular cleaning.

FORCED AIR

Blow away dirt and debris using clean compressed air.

PROFESSIONAL INJECTION/EXTRACTION CLEANING

Call local on-site blind/shade cleaner that injects a cleaning solution
into the fabric and extracts the dirty solution at the same time. The
service is typically performed at home so you do not need to remove
your window treatments.

VACUUMING

Use a low suction vacuum with a brush-type cleaner attachment;
stroke lightly over the shade to clean.

SPOT-CLEANING/STAIN REMOVAL AT HOME

Use warm water and a mild soap, like Woolite® or Scotchgard®, if
needed. Do not immerse shade in water.

A Note About Fabrics

As with all textiles, Cellular fabrics are subject to some variations. Slight wrinkling,
puckering, or bowing is inherent to this textile product and should be considered
normal, acceptable quality. These characteristics are not usually visible from the
front or rear but may be visible from a side angle.

Precautions should be taken to reduce exposure to harsh environmental elements,
such as salt air. Continuous exposure through open windows and doors will accelerate
the fabric deterioration.

NOTE: Improper cleaning may void warranty.

Page 19

TROUBLESHOOTING

If your shade is not operating correctly:

· First review the guide that came with your control device.

. Refer to the following troubleshooting procedures for specific solutions for your shade.

If questions remain, please contact LEVOLOR Customer Service at 1-800-LEVOLOR or
1-800-538-6567

Problem	The shade will not fit into the installation brackets.
Solution	Check that the installation brackets are level and aligned. Adjust and/ or shim to level, if necessary. Be sure the heads of the mounting screws are flush against the installation bracket. Make sure that the shade fabric is not caught between the installation bracket and the headrail. Check that the headrail is completely inserted into the installation brackets.
Problem	The shade raises or lowers unevenly or the bottom rail is uneven when fully raised.
Solution	Lower the shade completely to allow it to "self-correct" skewing. Check that the headrail and installation brackets are level and aligned. Shim the installation brackets to level the headrail, if necessary. Adjust the bottom rail. See "Level the Bottom Rail (If Necessary)" on page 17.

WARRANTY

For complete warranty information visit LEVOLOR.com or call Customer Service
at 1-800-LEVOLOR or 1-800-538-6567.

CONTACTING US

To contact LEVOLOR Customer Service regarding any questions or concerns
you may have about your new shades, you may reach us at 1-800-LEVOLOR
(9:00 am - 6:00 pm EST)

www.LEVOLOR.com

ADDITIONAL PARTS AND SERVICES

Additional or replacement parts can be ordered, or shades can be repaired or
restrung through our repair center. Please contact LEVOLOR Customer Service
through www.LEVOLOR.com for a return authorization number.

Page 20
